This page describes our main product, the “Quartz-type water level gauge,” the “Laser scanning water level gauge,” a non-contact water level gauge that uses laser scanning line technology, which is the latest type of water level gauge, and other water level gauges.

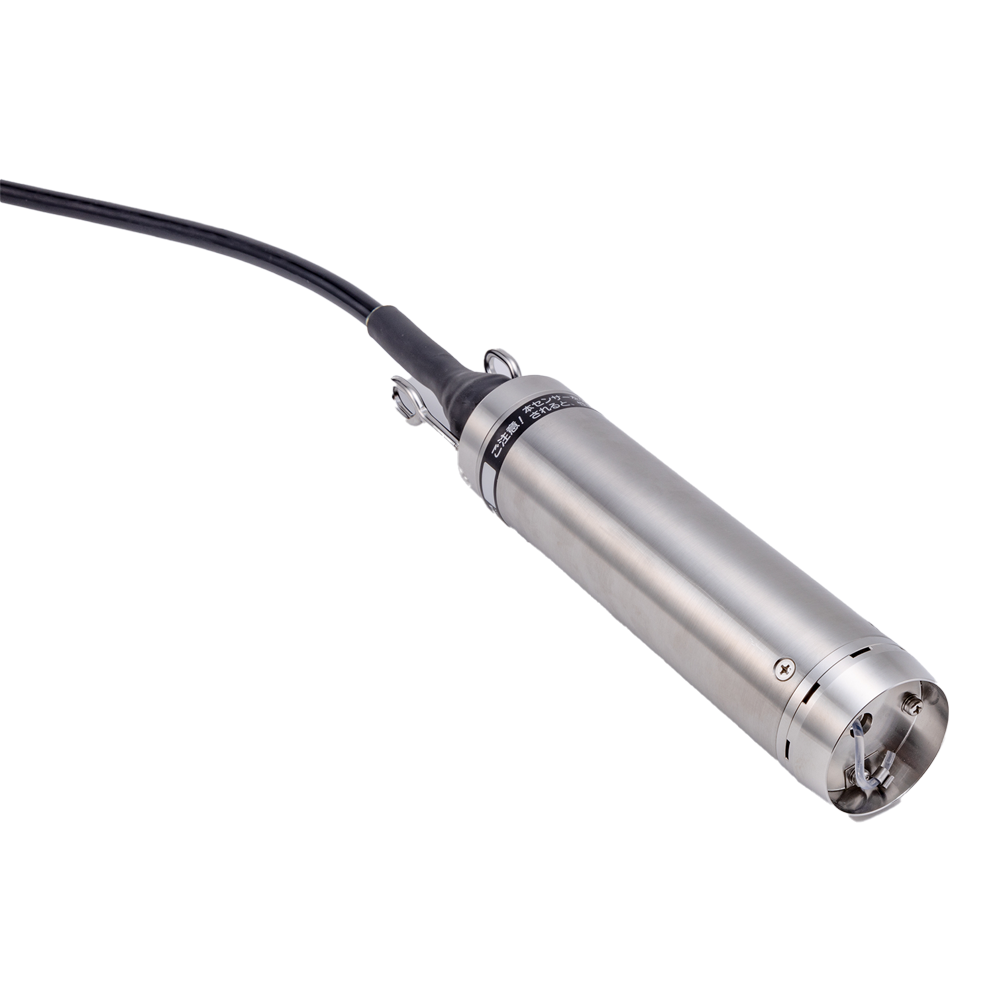

Quartz Water Level Gauge (RS-485 type)

Our quartz water level gauge is a pressure type; it detects the water level from the water pressure. It uses a quartz oscillator for pressure detection so that the water level can be measured with high accuracy.
It converts the frequency of the quartz oscillator into water level and outputs it as a serial signal of the RS-485.

View a catalog
Our quartz water level gauge
Our laser scanning water level gauge

Laser Scan Water Level Gauge

Our laser scanning water level gauge uses 2D scanning to make measurement, so it is less vulnerable to rain and fog in measurement compared to conventional water level gauges that use lasers or light waves.

View a catalog

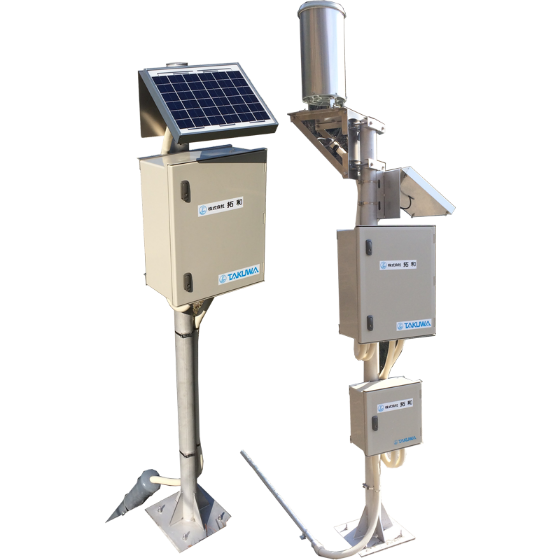

IoT Water Level Gauge

Thanks to the latest technology, our IoT water level gauge solves the high installation and maintenance costs that are a problem in measuring water levels and rainfall and in observing landslides.
By using LoRaWAN, the water level gauge makes it possible to collect measurements in basins of a river and to provide comprehensive information for disaster prevention.

View a catalog
Our IoT water level gauge

Our other types of level gauge

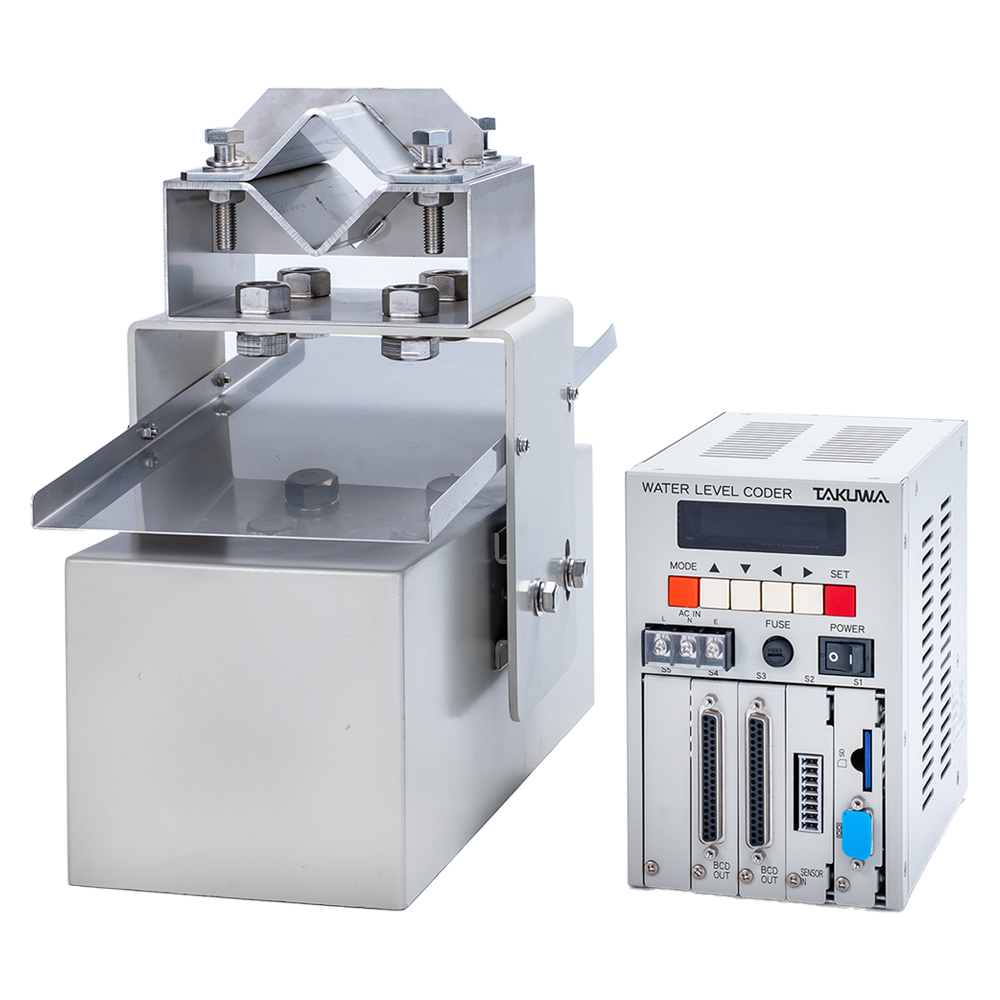

Quartz-type water level gauge
In the quartz-type water level gauge, frequency signals from the crystal oscillator are converted into optical signals (single mode: SM) in the electrical-optical converter (E/O converter) of the sensor for transmission.
For power, the coder supplies power in the form of light to the optical power supply unit inside the sensor, which generates electricity.
Quartz-type water level gauge with temperature corrector
It has a built-in sensor, sensor cable, and temperature sensor used in crystal water level meters with high accuracy and stability. Even in deep water such as a dam lake where there is a temperature difference in the water, the temperature sensor measures the water temperature and performs density correction according to the water temperature, enabling highly accurate water level observation. And, it is easy to install and maintain it, just like conventional types of water level meters.
Pressure-type water level gauge
Our pressure-type water level meter uses a semiconductor pressure detection system, and ceramics are used in the pressure receiver that converts the water level into water pressure.
Microwave-type water level gauge
Our microwave-type water level gauge uses a microwave pulse propagation time difference system. Because it uses microwaves to make measurements, it is not affected by environmental conditions, the properties of the object, or temperature.
Cylindrical digital water level gauge
Our cylindrical digital water level gauge has a simple structure in which a float with a magnet attached can move up and down. It is equipped with a reed switch in 1-cm increments to enable direct water level measurement by the position of the float. It can be installed in any location of a river or waterway, near a sluice gate, at a drainage pumping station, or wall of a pumping station.
